Lighting Effects

High-bay light for indoor and outdoor lighting of large areas, available in ceiling, suspended or floodlight version. It combines the flexibility of a modular solution with high efficiency sources, ensuring the best lighting performance; its elegant design integrates with any type of environment.
Thanks to the wide range of symmetric optics NADIR can produce from narrow to ultra wide light beams; the projector version can be provided with asymmetrical optic too. Besides, the  possibility to combine from two to six LED modules, producing luminous beams of different powers, ensure great versatility of use and makes it able to meet the various needs of the lighting project.
NADIR is a lighting solution for both indoor and outdoor environments, specially suitable for sport facilities, airport halls, wide areas and public spaces.

  • Highly resistant die-cast aluminium body and trim
  • Silicone gaskets guarantee high watertightness in order to maintain the IP rating
  • Wide range of colour temperatures to ensure adaptability to projects requirement and environments
NADIR ceiling - 4 luminaires
ceiling - 4 luminaires

Versions


LED Color


Color


Wiring

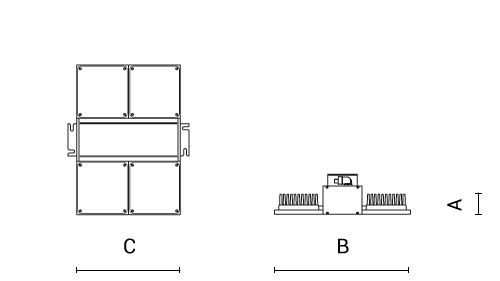

Code Optics Watt Lumen CCT CRI Wiring A B C
0265003A-840-16 narrow 12° 290W 33800lm 4000K 80 ON/OFF 170mm 556mm 435mm
0265001A-840-16 flood 37° 290W 29600lm 4000K 80 ON/OFF 170mm 556mm 435mm
0265005A-840-16 very wide flood 66° 290W 28000lm 4000K 80 ON/OFF 170mm 556mm 435mm
0265007A-840-16 ultra wide flood 99° 290W 35200lm 4000K 80 ON/OFF 170mm 556mm 435mm

Other versions

Suspended Bridge, Vagli

NADIR fittings are installed on the pillars due to their light diffusion and illuminate the whole length of the structure, and enhance the aesthetic of the geometric shape.
