Lighting Effects

The powerfuul and resistant recessed ceiling downlight ideal for decorative and functional lighting in contexts requiring maximum protection. Its resistant structure and compact design, with shallow depth installation required, concentrates excellent performance and variety of optics, making it a versatile lighting solution, that fits a wide range of applications.

  • Elegant and compact design that integrates seamlessly into any architecture
  • High resistance: aluminium and AISI 316L stainless steel structure makes it suitable for environments requiring maximum protection
  • Versatility: a wide range of optics to achieve different light effects, from narrow to ultra-wide and asymmetrical beams, to customize light effects
  • Applications: illumination of pedestrian areas, wellness centers, swimming pools and environments exposed to high humidity
  • Available with Bluetooth Low Energy technology to enable remote control


RAY180 short die-cast aluminium trim
die-cast aluminium trim

Versions


LED Color


Color


Wiring

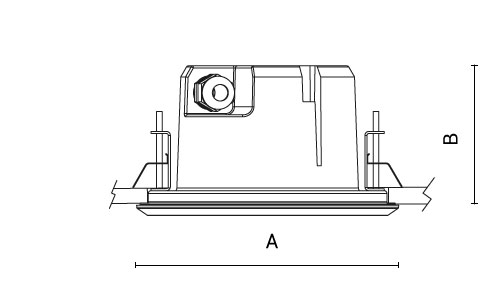

Code Optics Watt Lumen CCT CRI Wiring A B C
0327010C-21 narrow 14° 12W RGBW REM-D 190mm 101mm
0327035A-840-21 narrow 14° 20W 2250lm 4000K 80 ON/OFF 190mm 101mm
0327008C-21 flood 40° 12W RGBW REM-D 190mm 101mm
0327021A-840-21 flood 29° 20W 1950lm 4000K 80 ON/OFF 190mm 101mm
0327023A-840-21 wide flood 56° 20W 2050lm 4000K 80 ON/OFF 190mm 101mm
0327022A-840-21 wide flood 47° 20W 2050lm 4000K 80 ON/OFF 190mm 101mm
0327024A-840-21 very wide flood 76° 20W 1950lm 4000K 80 ON/OFF 190mm 101mm
0327025A-840-21 ultra wide flood 91° 20W 1350lm 4000K 80 ON/OFF 190mm 101mm
0327006C-21 elliptic 22°x46° 12W RGBW REM-D 190mm 101mm
0327026A-840-21 elliptic 27°x50° 20W 2100lm 4000K 80 ON/OFF 190mm 101mm
0327027A-840-21 wall washer Imax=20° 20W 1800lm 4000K 80 ON/OFF 190mm 101mm
