Recessed floor luminaires

INGROUND110 short

Lighting Effects

The in-ground luminaires for functional and scenographic lighting

Aesthetics and functionality merge into INGROUND range of in-ground luminaires: a versatile and elegant solution for many outdoor lighting projects; they have a particular vocation for creating suggestive lightpaths that improve safety and redefine the space.

  • Elegant design, that integrates easily into any environment
  • High resistance: the AISI 316L stainless steel structure guarantees an high protection degree; walk over grade fitting with a static load capacity up to 2000kg
  • Versatility: a wide range of optics (from narrow to ultra-wide and wall-washer) and color temperatures to create decorative light effects that can be customized according to the needs of the project; available with different trims
  • Available with Bluetooth Low Energy technology for remote control
  • Application: garden lighting, illumination of pedestrian areas, passageways and environments with high humidity such us wellness centers and pools
INGROUND110 short round trim flush with ground
round trim flush with ground

Versions


LED Color


Color


Wiring

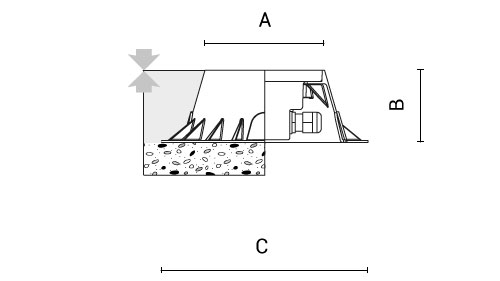

Code Optics Watt Lumen CCT CRI Wiring A B C
0770019C-830-30 spot 10° 4W 550lm 3000K 80 REM-D 110mm 73mm 190mm
0770022C-30 spot 10° 4W RGBW REM-D 110mm 73mm 190mm
0770016C-830-30 medium 24° 4W 550lm 3000K 80 REM-D 110mm 73mm 190mm
0770023C-30 medium 24° 4W RGBW REM-D 110mm 73mm 190mm
0770004C-830-30 wide flood 47° 4W 500lm 3000K 80 REM-D 110mm 73mm 190mm
0770024C-30 wide flood 47° 4W RGBW REM-D 110mm 73mm 190mm
0770010A-830-30 extra wide flood 103° 4W 180lm 3000K 80 ON/OFF 110mm 73mm 190mm
0770013C-830-30 extra wide flood 103° 4W 120lm 3000K 80 REM-D 110mm 73mm 190mm
0770001C-830-30 elliptic 10°X54° 4W 525lm 3000K 80 REM-D 110mm 73mm 190mm
0770025C-30 elliptic 10°X54° 4W RGBW REM-D 110mm 73mm 190mm
0770007C-830-30 wall washer Imax=20° 4W 550lm 3000K 80 REM-D 110mm 73mm 190mm
0770026C-30 wall washer Imax=20° 4W RGBW REM-D 110mm 73mm 190mm
