Lighting Effects

In-ground luminaire featuring an elegant design with a squared shape and a wide range of optics, from spot to ultra-wide, symmetric and wallwasher. Walkable and resistant, this recessed uplight is suitable for any environmental condition; it is a perfect steplight for charming light paths, enhancing facades, architectural and natural details.

  • Elegant and resistant aluminium body and AISI 316L stainless steel trim
  • Silicone gaskets guarantee a strong seal in order to maintain the IP rating
  • Thermal-shock resistant tempered glass screen
  • Assortment of otpics to achieve different effects, from narrow to ultra-wide and wall-washer beam angles
  • Wide range of colour temperatures to ensure adaptability to projects requirements
  • LED temperature control device to maximize source lifetime

Ideal lighting solution for urban areas, walkways, parks and architectural attractions

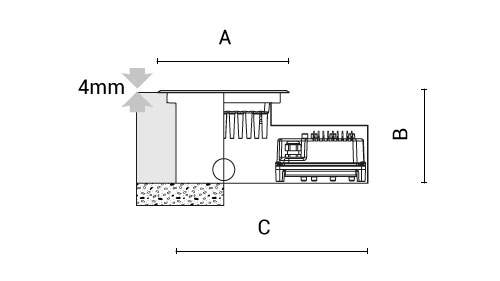

QUAD200 trim above the ground - recessed L box
trim above the ground - recessed L box

Versions


LED Color


Color


Wiring


Code Optics Watt Lumen CCT CRI Wiring A B C
0765016A-840-30 spot 9° 37W 4050lm 4000K 80 ON/OFF 230mm 167mm 340mm
0765039F-30 spot 9° 40W RGBW DMX 230mm 167mm 340mm
0765014A-840-30 medium 25° 37W 3800lm 4000K 80 ON/OFF 230mm 167mm 340mm
0765058F-30 medium 25° 40W RGBW DMX 230mm 167mm 340mm
0765020A-840-30 wide flood 47° 37W 3500lm 4000K 80 ON/OFF 230mm 167mm 340mm
0765003F-30 wide flood 46° 40W RGBW DMX 230mm 167mm 340mm
0765009A-840-30 elliptic 9°x52° 37W 3700lm 4000K 80 ON/OFF 230mm 167mm 340mm
0765040F-30 elliptic 9°x52° 40W RGBW DMX 230mm 167mm 340mm
0765049A-840-30 wall washer Imax=19° 37W 3400lm 4000K 80 ON/OFF 230mm 167mm 340mm
0765057F-30 wall washer Imax=19° 40W RGBW DMX 230mm 167mm 340mm
