Lighting Effects

In-ground luminaire featuring an elegant design with a squared shape and a wide range of optics, from spot to ultra-wide, symmetric and wallwasher. Walkable and resistant, this recessed uplight is suitable for any environmental condition; it is a perfect steplight for charming light paths, enhancing facades, architectural and natural details.

  • Elegant and resistant aluminium body and AISI 316L stainless steel trim
  • Silicone gaskets guarantee a strong seal in order to maintain the IP rating
  • Thermal-shock resistant tempered glass screen
  • Assortment of otpics to achieve different effects, from narrow to ultra-wide and wall-washer beam angles
  • Wide range of colour temperatures to ensure adaptability to projects requirements
  • LED temperature control device to maximize source lifetime

Ideal lighting solution for urban areas, walkways, parks and architectural attractions

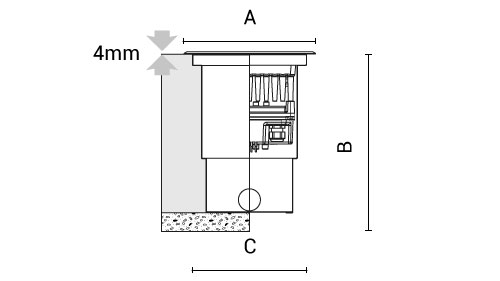

QUAD200 trim above the ground - recessed deep box
trim above the ground - recessed deep box

Versions


LED Color


Color


Wiring


Code Optics Watt Lumen CCT CRI Wiring A B C
0765017A-840-30 spot 9° 37W 2850lm 4000K 80 ON/OFF 230mm 284mm 202mm
0765041F-30 spot 9° 40W RGBW DMX 230mm 284mm 202mm
0765013A-840-30 medium 25° 37W 2800lm 4000K 80 ON/OFF 230mm 284mm 202mm
0765060F-30 medium 25° 40W TBD RGBW ON/OFF 230mm 284mm 202mm
0765019A-840-30 wide flood 46° 37W 2500lm 4000K 80 ON/OFF 230mm 284mm 202mm
0765004F-30 wide flood 46° 40W RGBW DMX 230mm 284mm 202mm
0765010A-840-30 elliptic 9°x57° 37W 2600lm 4000K 80 ON/OFF 230mm 284mm 202mm
0765042F-30 elliptic 9°x57° 40W RGBW DMX 230mm 284mm 202mm
0765059F-30 asymmetric -1 40W TBD RGBW ON/OFF 230mm 284mm 202mm
