Recessed floor luminaires

INGROUND180 short

Lighting Effects

In-ground luminaire combining a sturdy structure and a small size with excellent lighting performances. Its high resistance degree (even in environments exposed to high humidity), and the wide range of optics makes it a versatile solution: it is a perfect steplight that creates suggestive light paths in functional lighting of pedestrian areas and passageways; besides, this recessed uplight is able to enhance facades and architectural and natural details with decorative and scenographic light effects.

  • High resistance aluminium body and AISI 316L stainless steel trim
  • Silicone gaskets guarantee a strong seal in order to maintain the IP rating
  • Thermal-shock resistant tempered glass screen
  • Drive over grade fitting with a static load capacity up to 2000kg
  • Wide range of optics to achieve different effects, from narrow to ultra-wide beam angles
  • Available with BLE technology to enable remote control

Ideal lighting solution for pedestrian areas, beauty and wellness centers, outdoor spaces in general

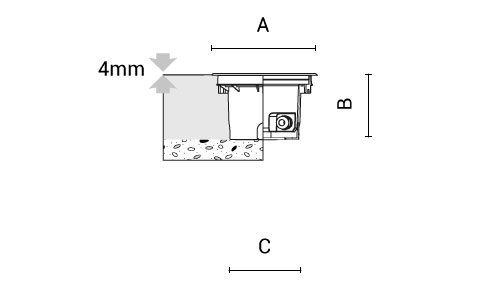

INGROUND180 short squared trim above the ground
squared trim above the ground

Versions


LED Color


Color


Wiring


Code Optics Watt Lumen CCT CRI Wiring A B C
0761017P-830-30 narrow 15° 12W 1100lm 3000K 80 PC 195mm 122mm 135mm
0761013C-30 narrow 14° 12W RGBW REM-D 195mm 122mm 135mm
0761005D-830-30 narrow 14° 14W 1350lm 3000K 80 DIMM 196mm 122mm 135mm
0761015P-830-30 flood 30° 12W 1050lm 3000K 80 PC 195mm 122mm 135mm
0761011C-30 flood 40° 12W RGBW REM-D 195mm 122mm 135mm
0761004D-830-30 flood 40° 14W 1250lm 3000K 80 DIMM 196mm 122mm 135mm
0761021P-830-30 ultra wide flood 90° 12W 650lm 3000K 80 PC 195mm 122mm 135mm
0761019C-30 elliptic 22°x46° 12W RGBW REM-D 196mm 122mm 135mm
0761003D-830-30 elliptic 22°x46° 14W 1250lm 3000K 80 DIMM 196mm 122mm 135mm
